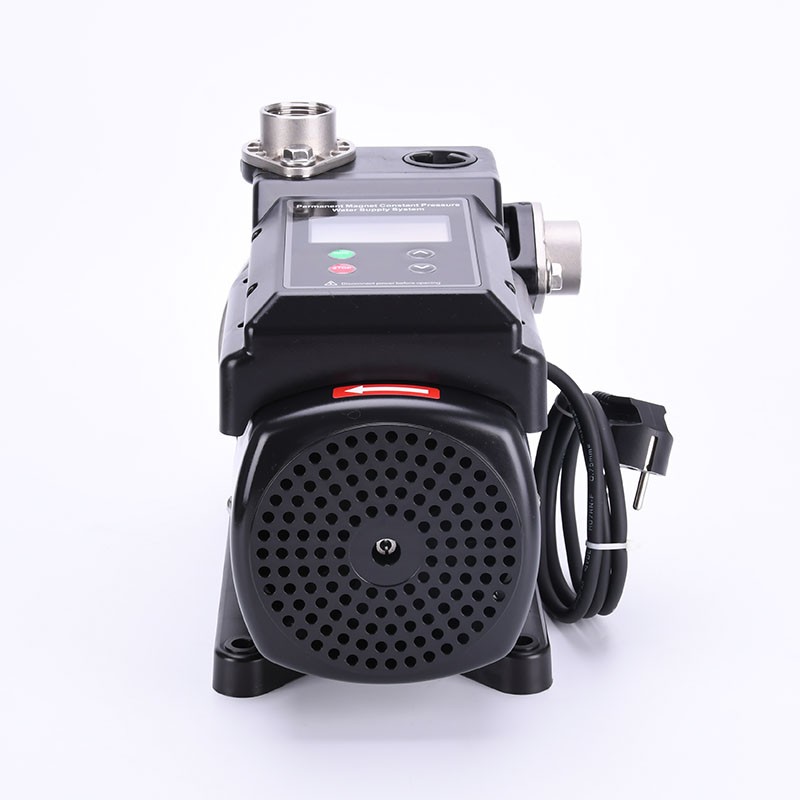

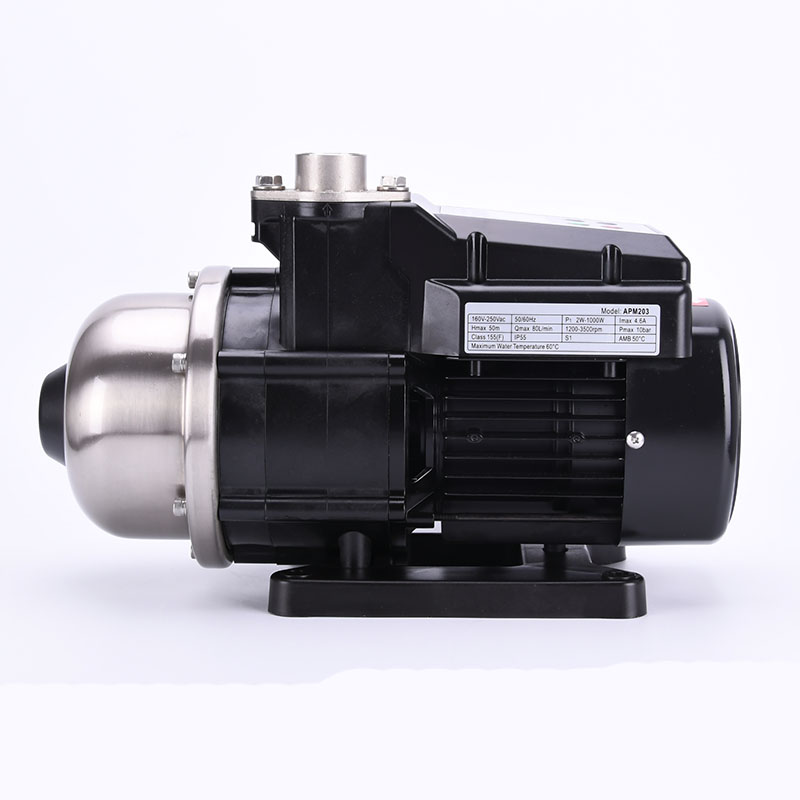

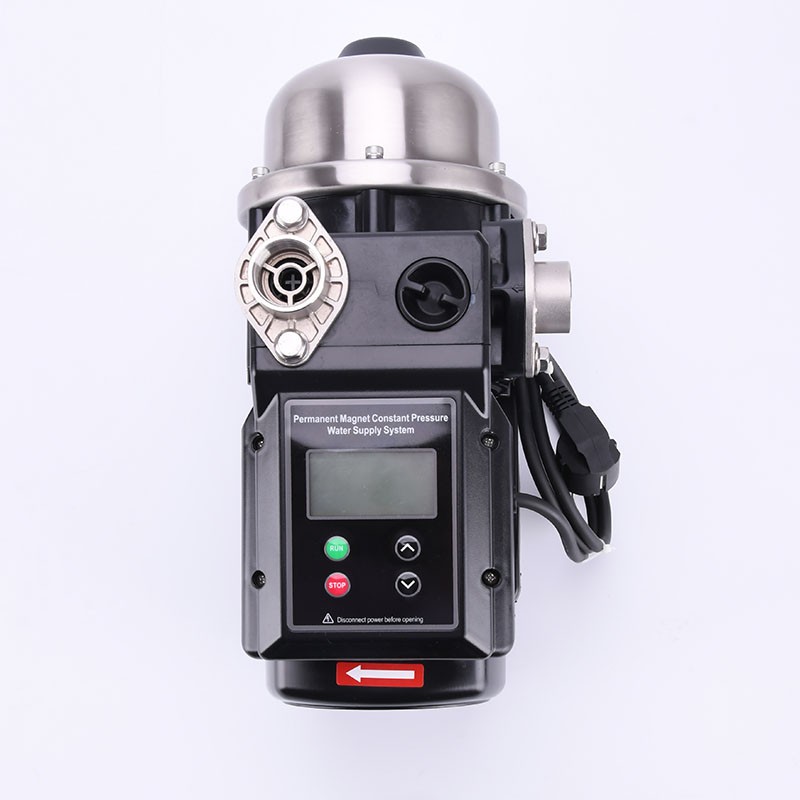

APM Inverter Permanent Magnet Constant Pressure Variable Frequency Pump

APM Permanent magnetic motor variable frequency driver pump, a cutting-edge solution for your water system needs. Designed with a powerful permanent magnet synchronous motor, The inverter water pump provides unparalleled efficiency and reliability. Constant pressure control system specially designed for the family, which is fully realized the constant water pressure so that users have the perfect water using experience.

MOQ Order :
50Pcs
Control Box :
Standard Box
Available Output :
1.0HP ; 1.3HP
Customized Service :
Yes, Brand/ Logo/ User manual/ Unit Box
Voltage/Hz :
110V, 220V; 50/60HZ
Lead Time :
20 Days
Warranty :
12 Months

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

APM Inverter Permanent Magnet Constant Pressure Variable Frequency Pump

Product Features

1. The inverter water pump uses PMSM motor, High energy efficiency and energy-saving (use more, and save more); Adopt the world’s most cutting-edge motor non-inductive driving technology to fully realized zero maintenance of motor system.

2. Low to 1W standby power design, so that the energy-saving technology can be fully presented.
3. Full comply with the high design standards and manufacturing requirements for product safety and environmental protection in the European Union and the United States.
4. The impeller adopts enhanced PPO, with copper insert structure to make it more rugged and durable.

5. The rotor shaft adopts stainless steel welding technology, avoid the water parts never rust.

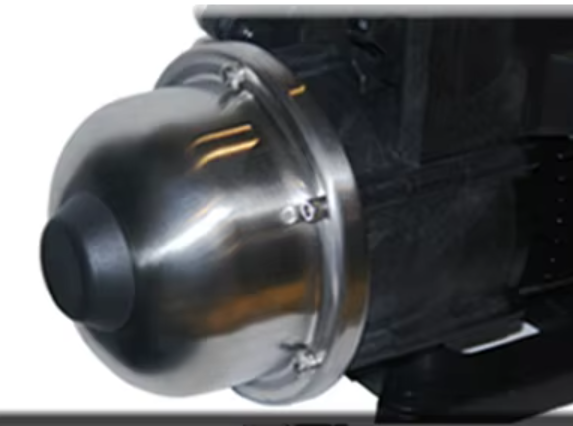

6. Pressure tank core diaphragm uses IIR material to improve the gas tightness

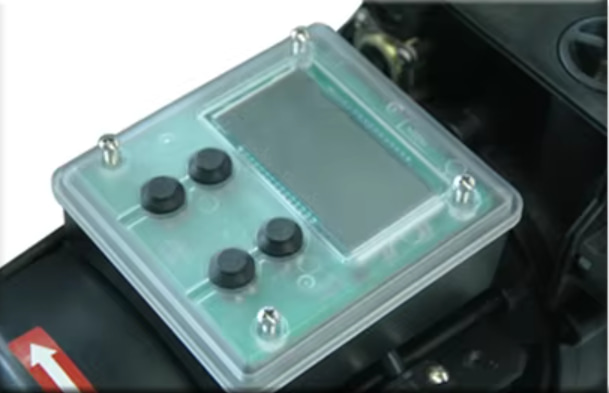

7. The human-computer interface of the Digital display and the most easily operated fool-type design, enable the system to communicate with users without obstacles

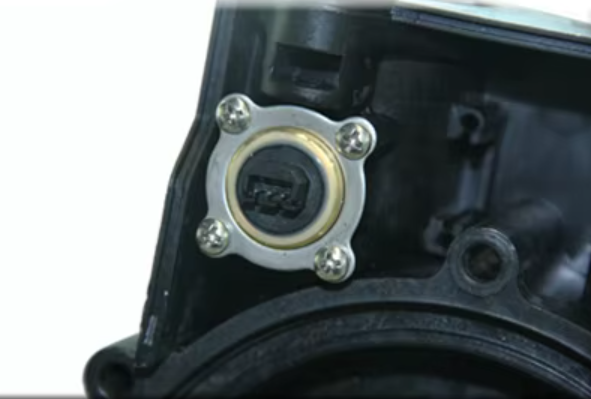

8. Adopt the pressure sensors of world-class brands to improve the reliability of the system
9. The system is integrated with the reverse stop valve structure, so that the internal pressure can be persisted under the condition of non-water use in the pipe network system

Technical Data:

Mode	Voltag	Power		Speed	Flow (m3/h)		Head (m)		Suction	Inlet/Outlet
Mode	V	KW	HP	RPM	Max.	Rated	Max.	Rated	m	Inlet/Outlet
APM202	220V 50/60HZ	0.8	1.07	3600	4.5	2	32	24	non	G1"
APM203	220V 50/60HZ	1.0	1.3	3600	4.8	2	45	37	non	G1"
APM204	220V 50/60HZ	1.0	1.3	3600	5.0	4	60	49	non	G1"
APM203	110V /60HZ	0.8	1.07	3600	4.8	2	45	36	non	G1"

Materials:

ABS casing,

stainless steel pump body,

stainless steel impeller,

304 welded shaft,

silicon carbide to graphite mechanical seal,

Sensate pressure sensor,

IP54

Operating Condition:

Liquid temperature: High temperature(0℃~+100℃)

Environment temperature:≤40℃

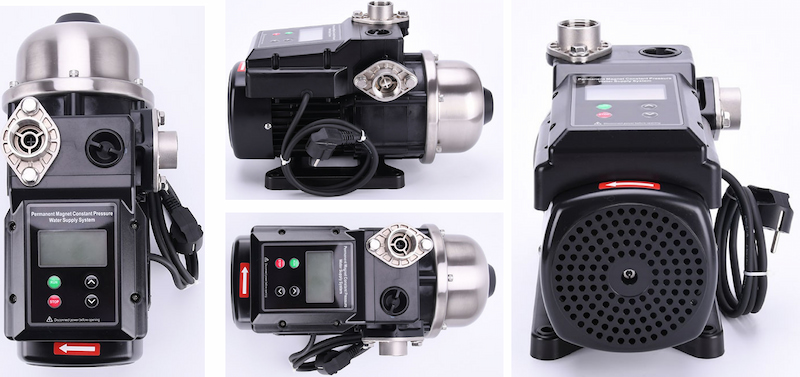

Detials of Pump:

APM Inverter Permanent Magnet Constant Pressure Variable Frequency Pump

WHY CHOOSE OUR PUMPS?

PERMANENT MAGNETIC MOTOR

The pump uses rare earth permanent magnet synchronous motor. Ultra-high energy efficiency and ultra-low power consumption

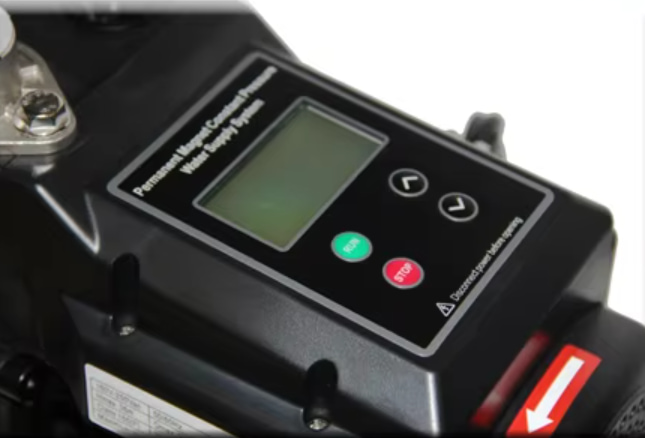

EASY OPERATION

The human-computer interface of the Digital display and the most easily operated design enable the system to communicate with the users without obstacles
