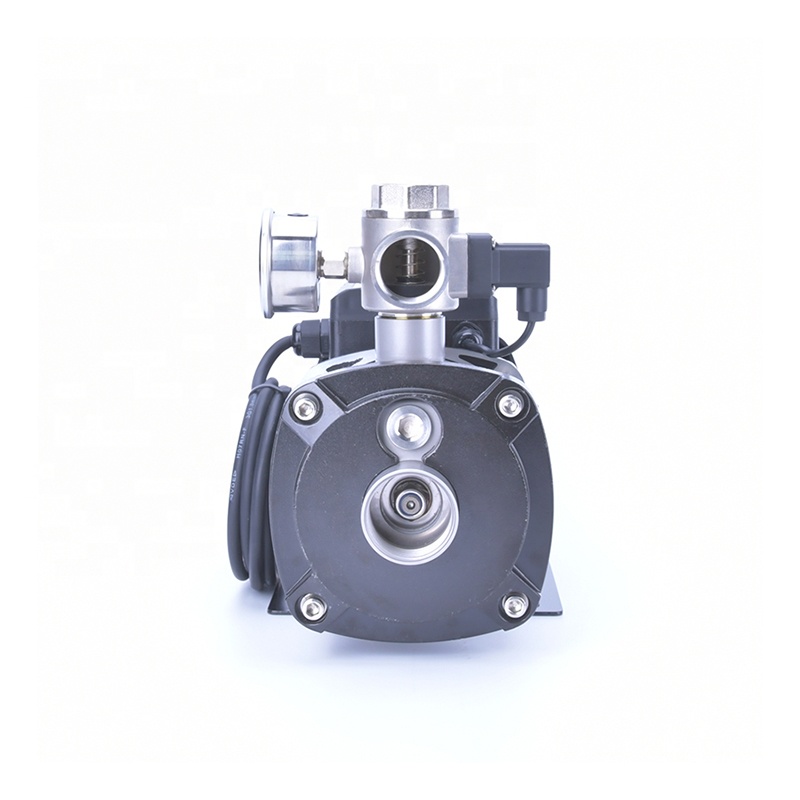

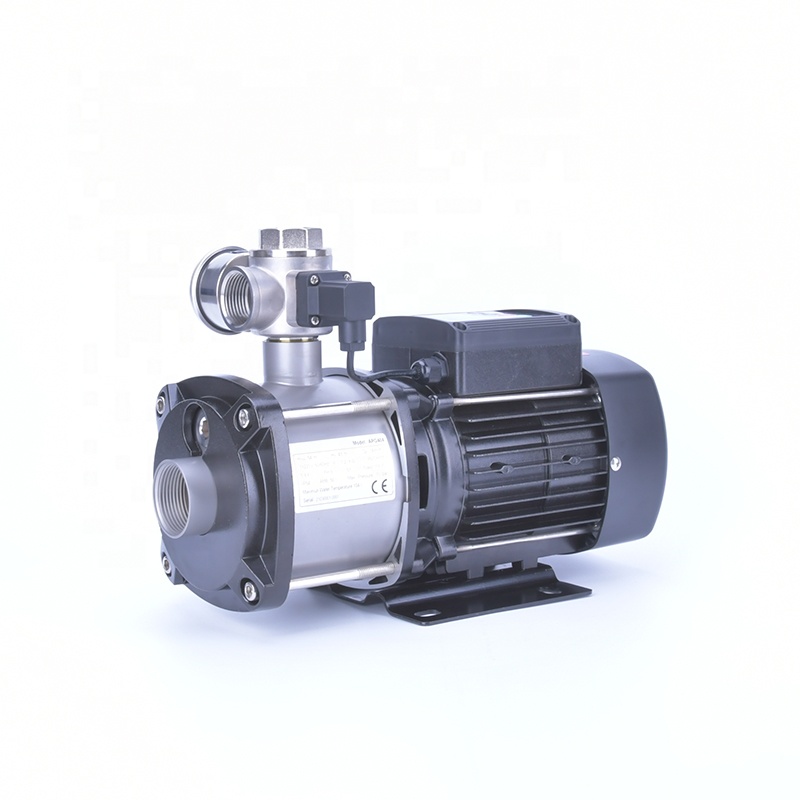

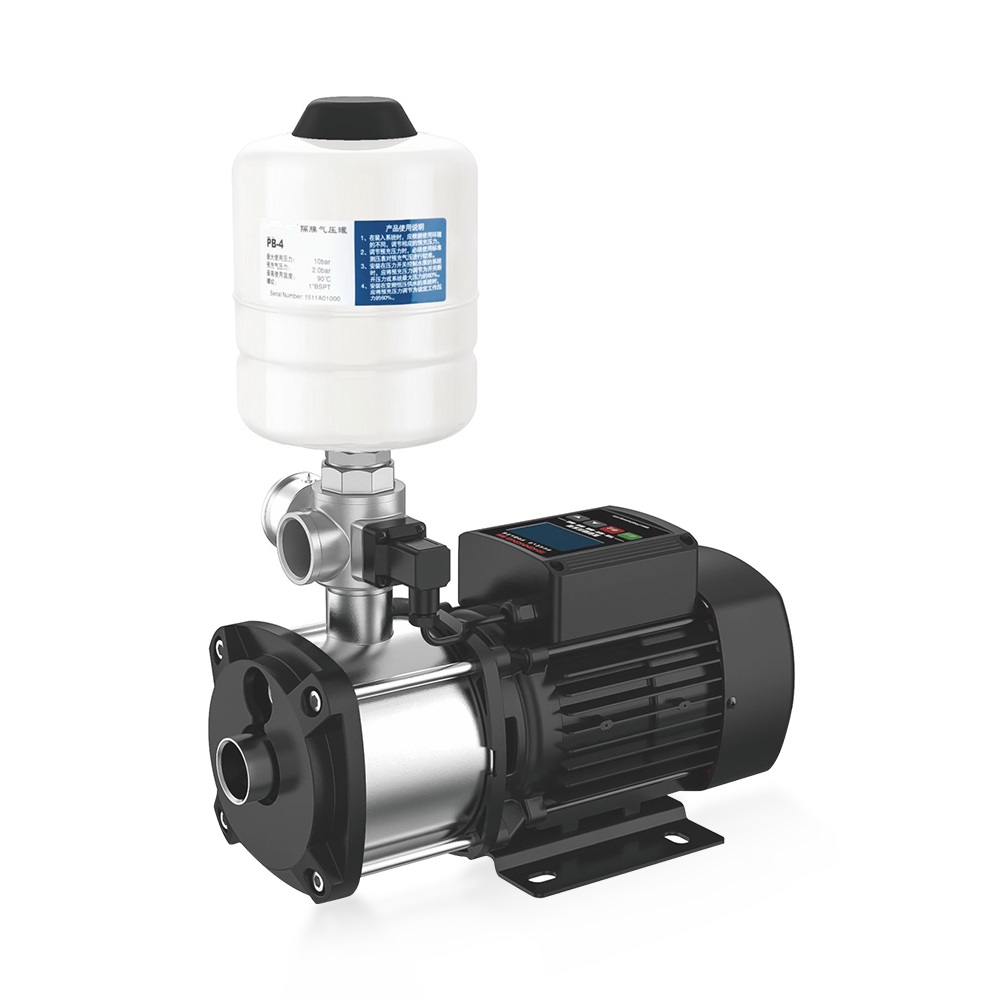

Smart Home Automatic Energy-Saving Variable Frequency Booster Pump APG Series

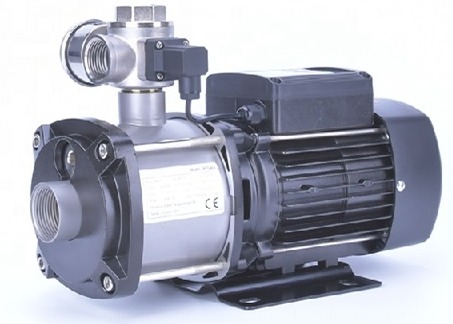

1. The system uses the permanent magnet synchronous motor, ultra-high energy efficiency, ultra-low power consumption; as low as 1W of standby power design, so that energy-saving technology can be perfectly presented;

2. Motor insensitive drive technology (FOC), fully realizes the zero maintenance of the motor system;

3. The rotor shaft uses stainless-steel welding technology to ensure that over-water components avoid rust in daily use

4. Pressure tank core diaphragm using IIR material; it is a long-life design without maintenance.

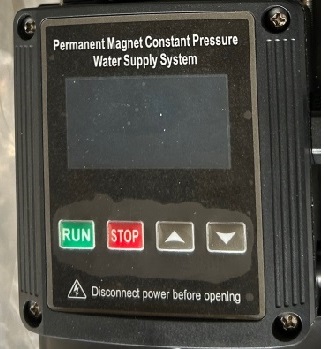

5. LED display human-machine interface, simple operation, and acceptance of OEM language on the panel.

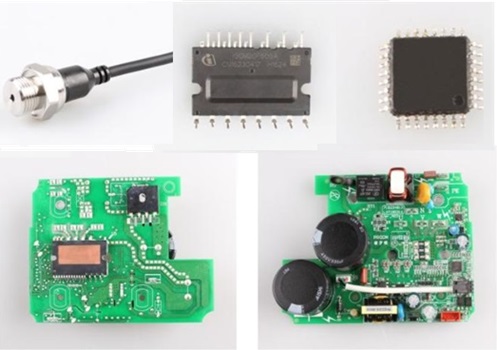

6. Equipped with industrial-grade pressure sensors;

7. System integration reverse valve structure;

8. A constant pressure control system designed for the home to achieve a complete constant water pressure.

Our Certificates

Frequently Asked Questions

Q1: Is the APG pump easy to install?

A1: Yes, the pump is designed with a plug-and-play structure. It comes pre-wired and factory-configured, requiring only standard pipe and power connections. No special tools are needed.

Q2: Is the APG pump is self-priming pump?

A2: No, it is not the self-priming pump; it is inverter water pump.

Q3: Can I control the pump remotely?

A3: No, the pump did not support smartphone APP control. Now we will consider designing the app in the next step

Q4: How often does the pump need maintenance?

A4: The pump requires minimal maintenance. Under normal conditions, we recommend checking the impeller, seals, and electrical connections every 6 to 12 months.

Q5: Is the pressure tank included in the set?

A5: Yes, the pressure will be included for this model; no need to purchase the tank additionally.

Q6: What is the lead time for MOQ (50 pcs)?

A6: 15-20 days,dependings on the requirements of the order, if the packing is neutral packing without special requests, we will make sure it will be ready in 20 days
